제목 MFA7 4,2CHANNEL

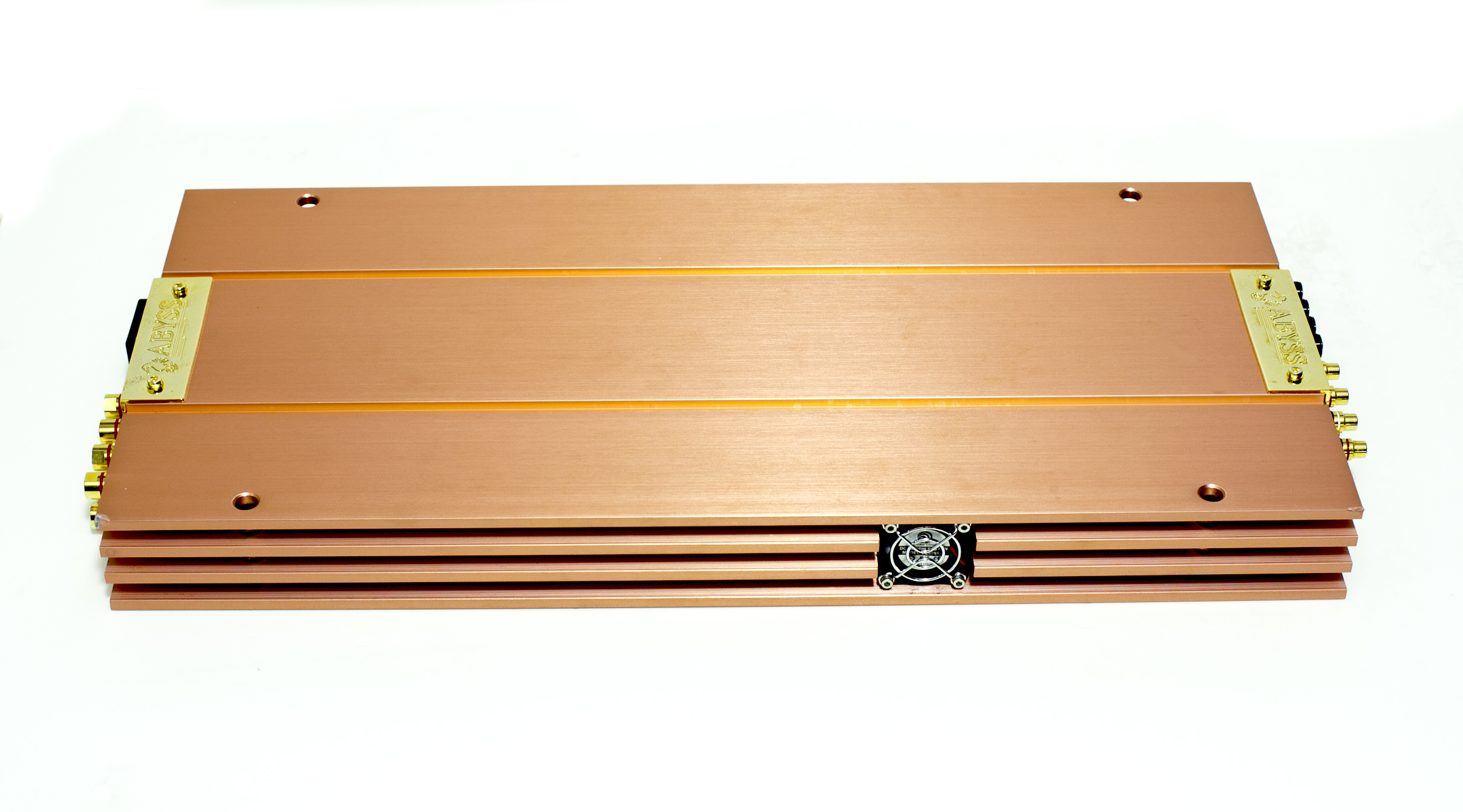

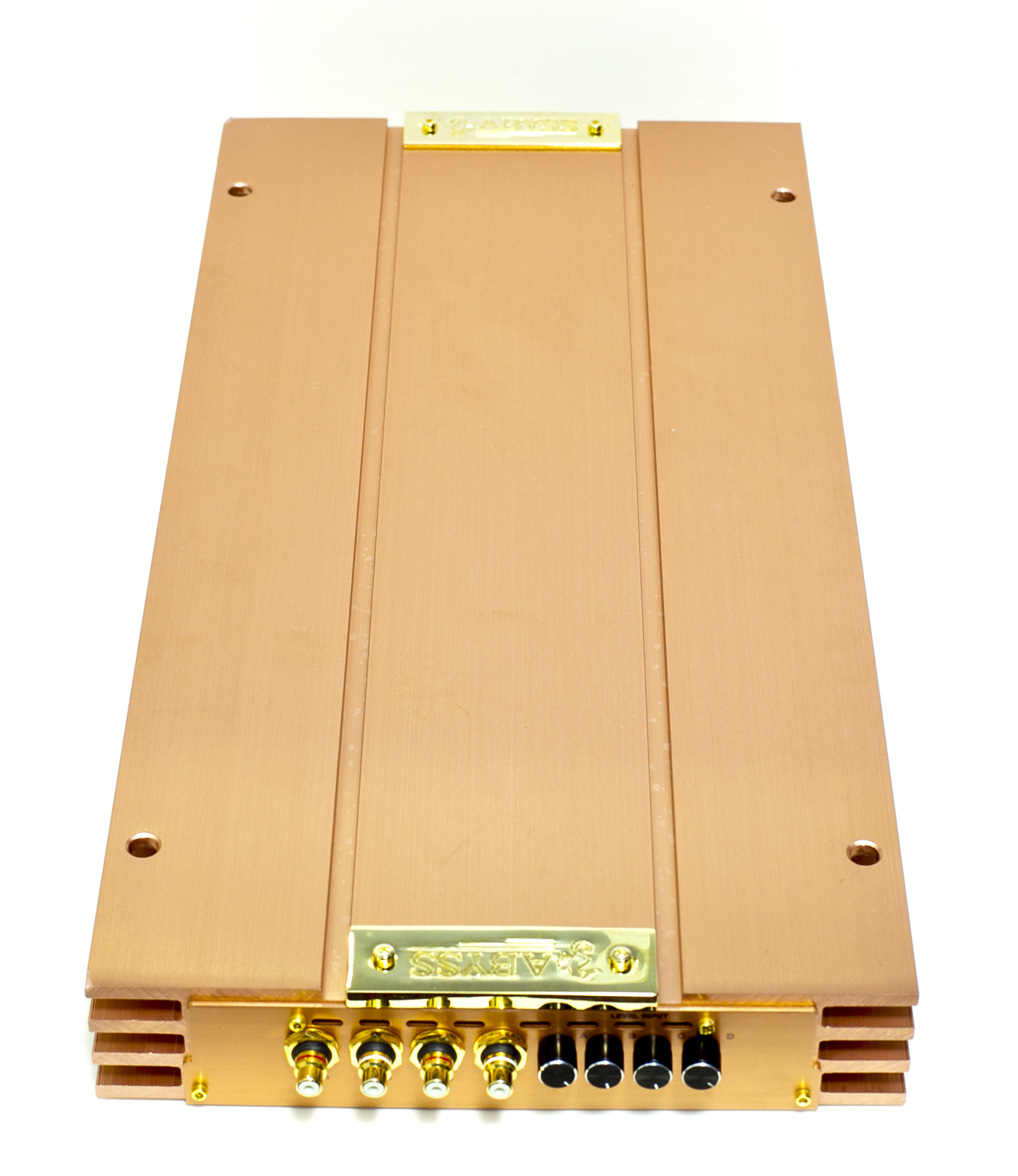

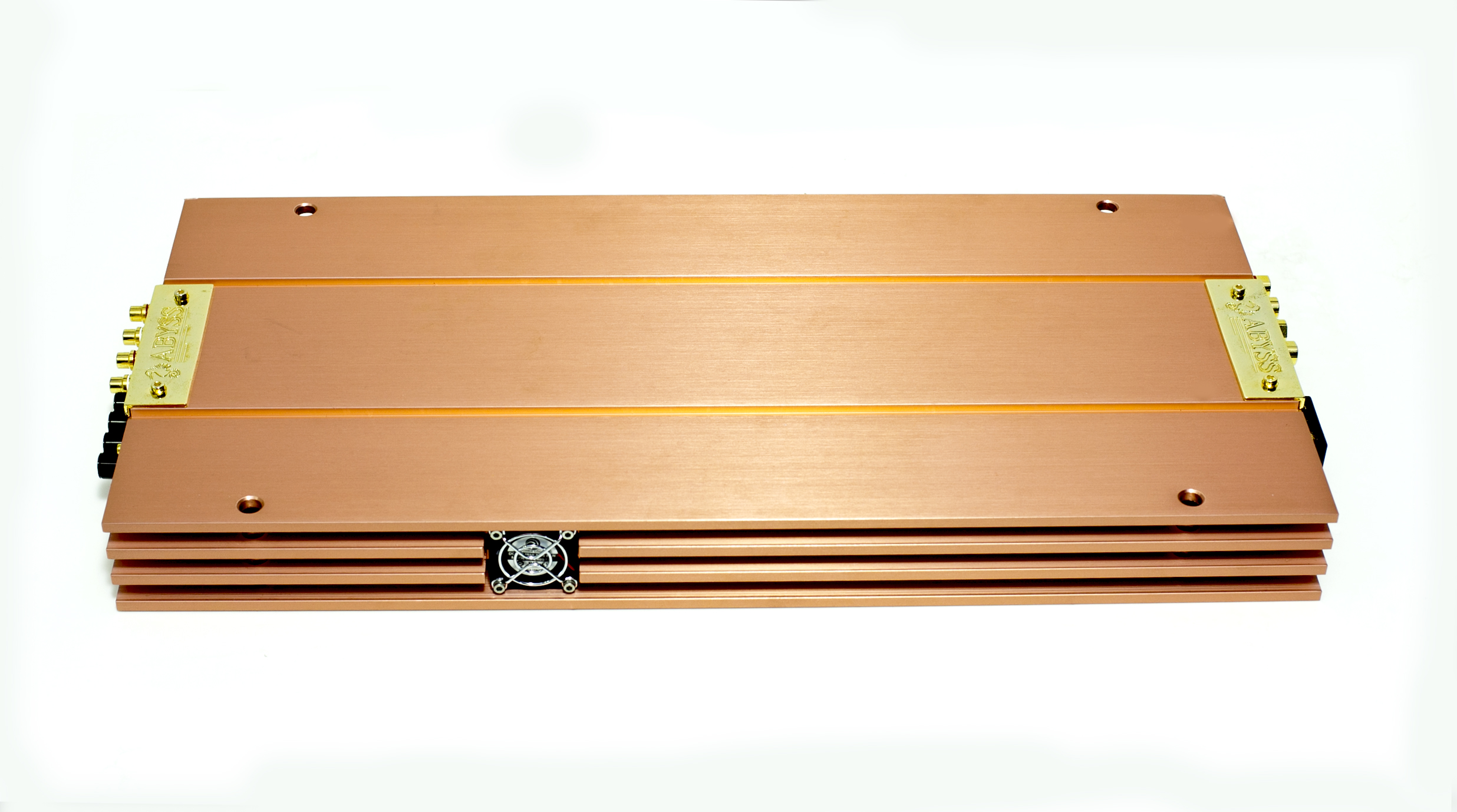

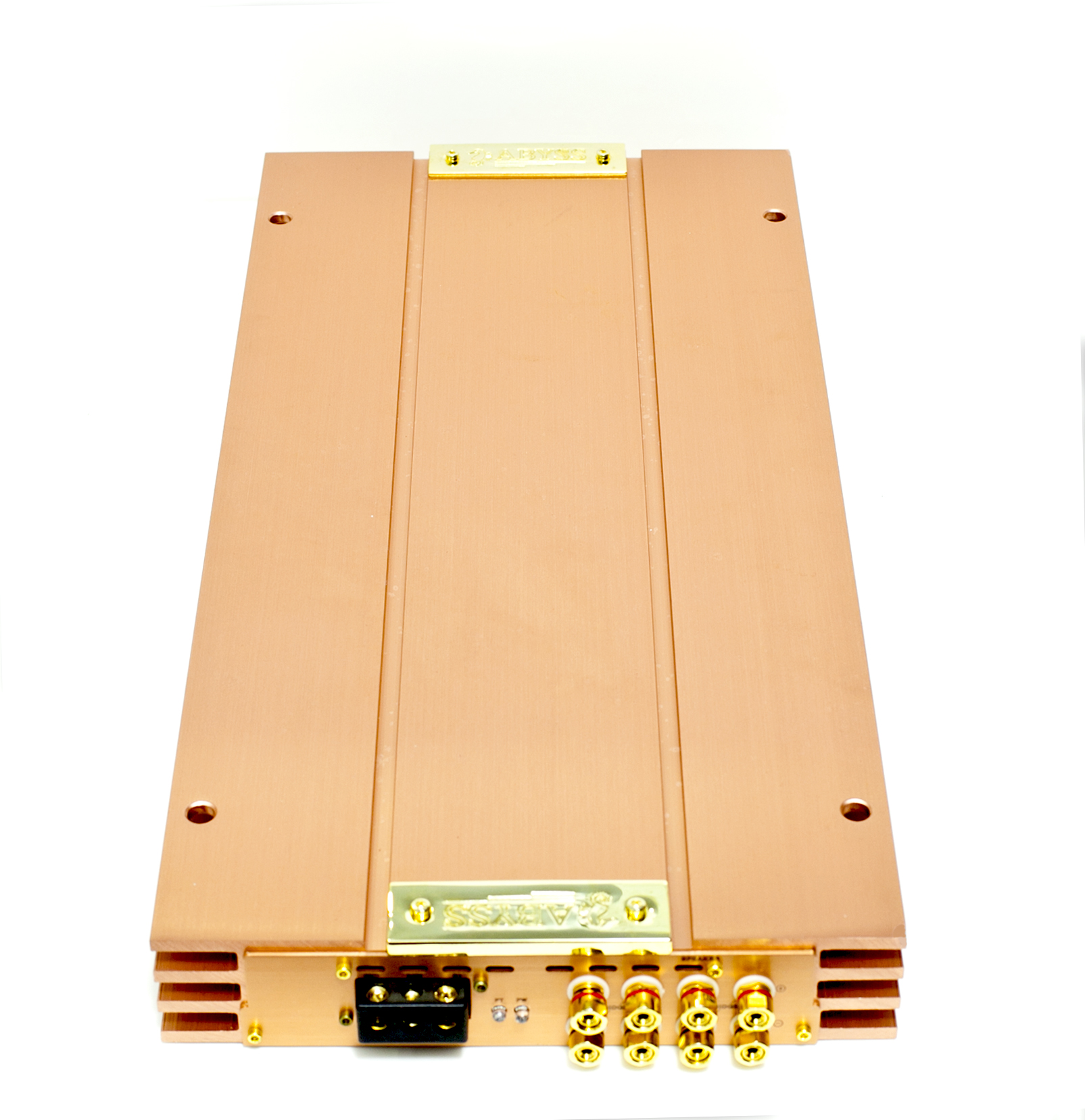

 4CHANNEL

























The Abyss MFA 7 series was the amplifier that put Abyss on the map back in the day.
Yes it will look familiar to people under another brand. But here's the kicker:
The MFA 7 series was around in Korea and Asia before the other brand :)
Read up our history section to get the full story :)
The MFA 7 board layout has been around for close to 18 years and this amplifier will take on every modern amplifier out there in the market today.
Way ahead of their time, Abyss was way ahead in its day and is still ahead of others today.
The Abyss MFA 7 series was the amplifier that put Abyss on the map back in the day.
Yes it will look familiar to people under another brand. But here's the kicker:
The MFA 7 series was around in Korea and Asia before the other brand :)
Read up our history section to get the full story :)
The MFA 7 board layout has been around for close to 18 years and this amplifier will take on every modern amplifier out there in the market today.
Way ahead of their time, Abyss was way ahead in its day and is still ahead of others today.

OUTPUT POWER RATING:
 4 OHM @ 14.4V ( 1% THD+N) : 125W X 4
2 OHM @ 14.4V ( 1% THD+N): 200W X 4
MONO BRIDGED @ 4 OHM: 400W X 2
OPERATING VOLTAGE : ?9 - 16V
POWER SUPPLY: PWM
OUTPUT POWER CIRCUIT CONFIGURATION:  CLASS AB
MAIN PCB MATERIAL : FR-4D/ 1 OZ
MISCELLANEOUS SPECIFICATIONS:

 SOFT START SOUND: YES
FREQUENCY RESPONSE @ -1dB ( 4 OHM 10 WATT): 20HZ - 20KHZ
DAMPING FACTOR (  4OHM/ 1%) : >200
S/N RATIO ( A-WEIGHT/ RMS POWER) :> 92dB
THD: ( 1-WEIGHT) 10W : 0.050%
CHANNEL SEPARATION: > 60dB
VARIABLE INPUT GAIN CONTROL ( 1% THD+N): 0.4V ~ 2.0V
INPUT IMPEDENCE: 20KΩ
LED(s): POWER/ PROTECT
PROTECTION ( SHORT, THERMAL, DC OFFSET): YES
RESIDUAL NOISE ( A- WEIGHT): 0.5mV BELOW
DIMENSIONS(WXHXL, MM): 265 X 53 X 554
WEIGHT: 8KG

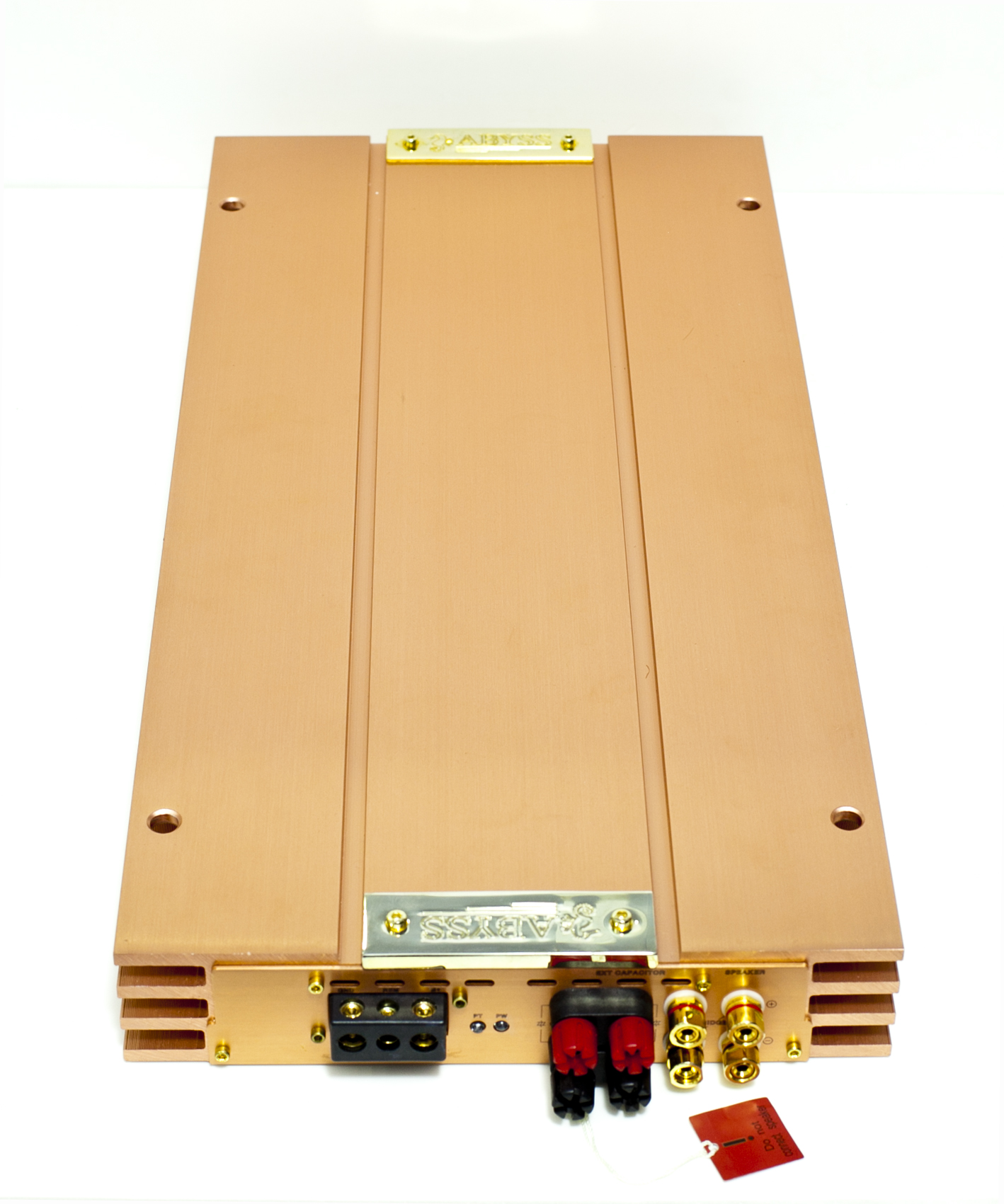

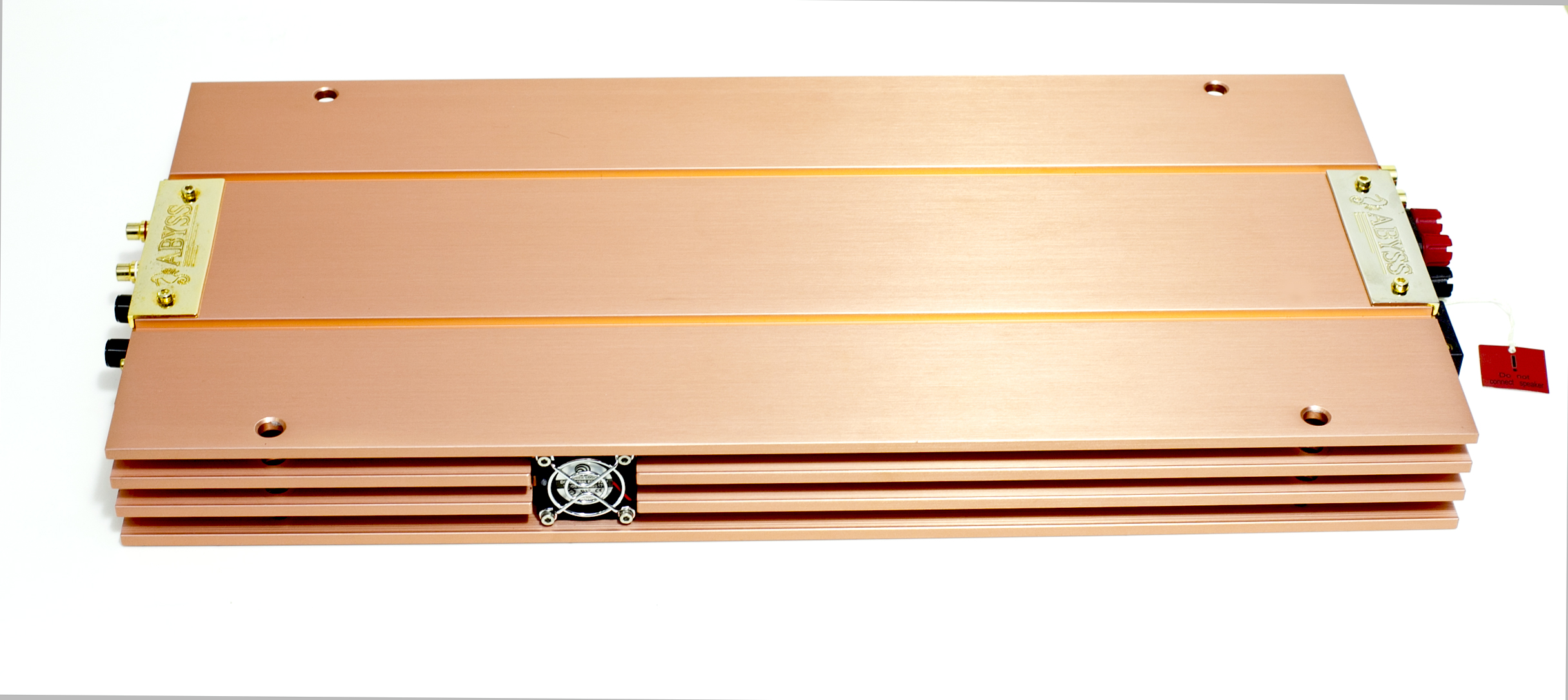

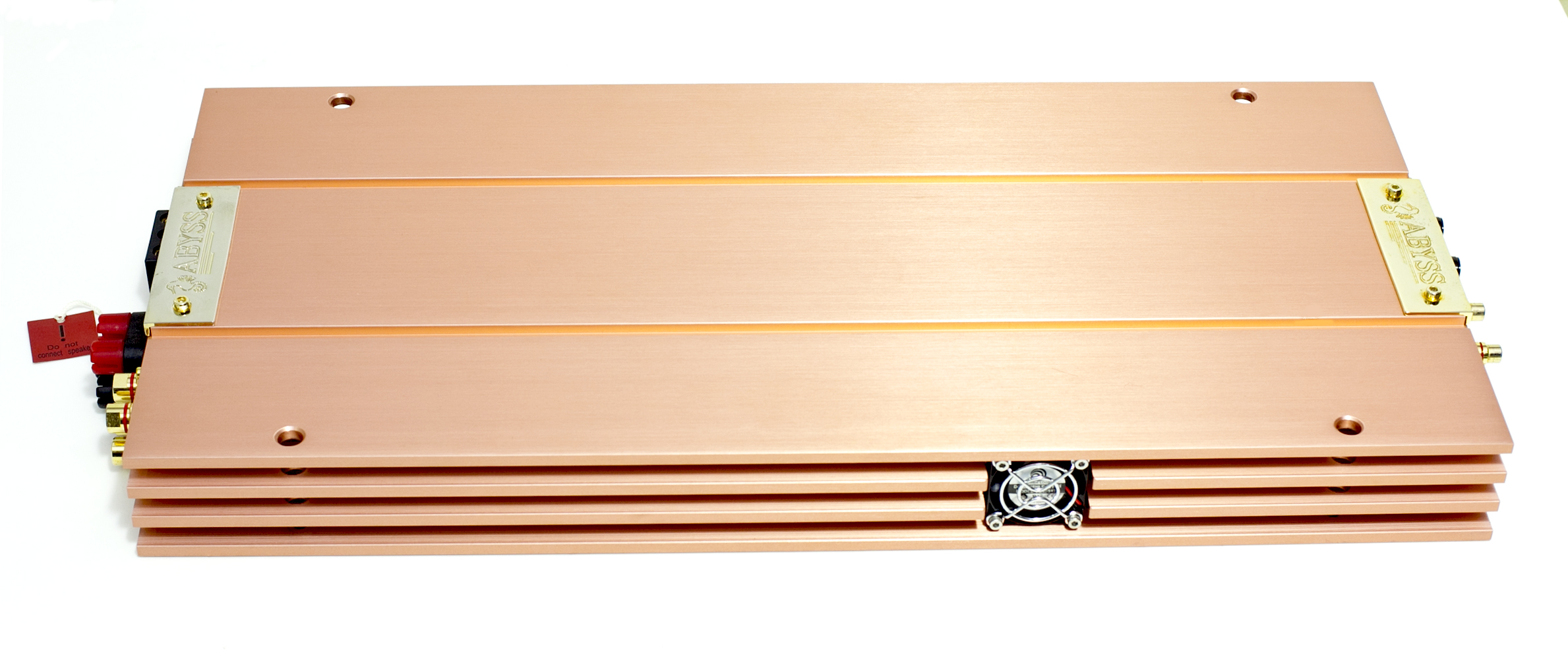

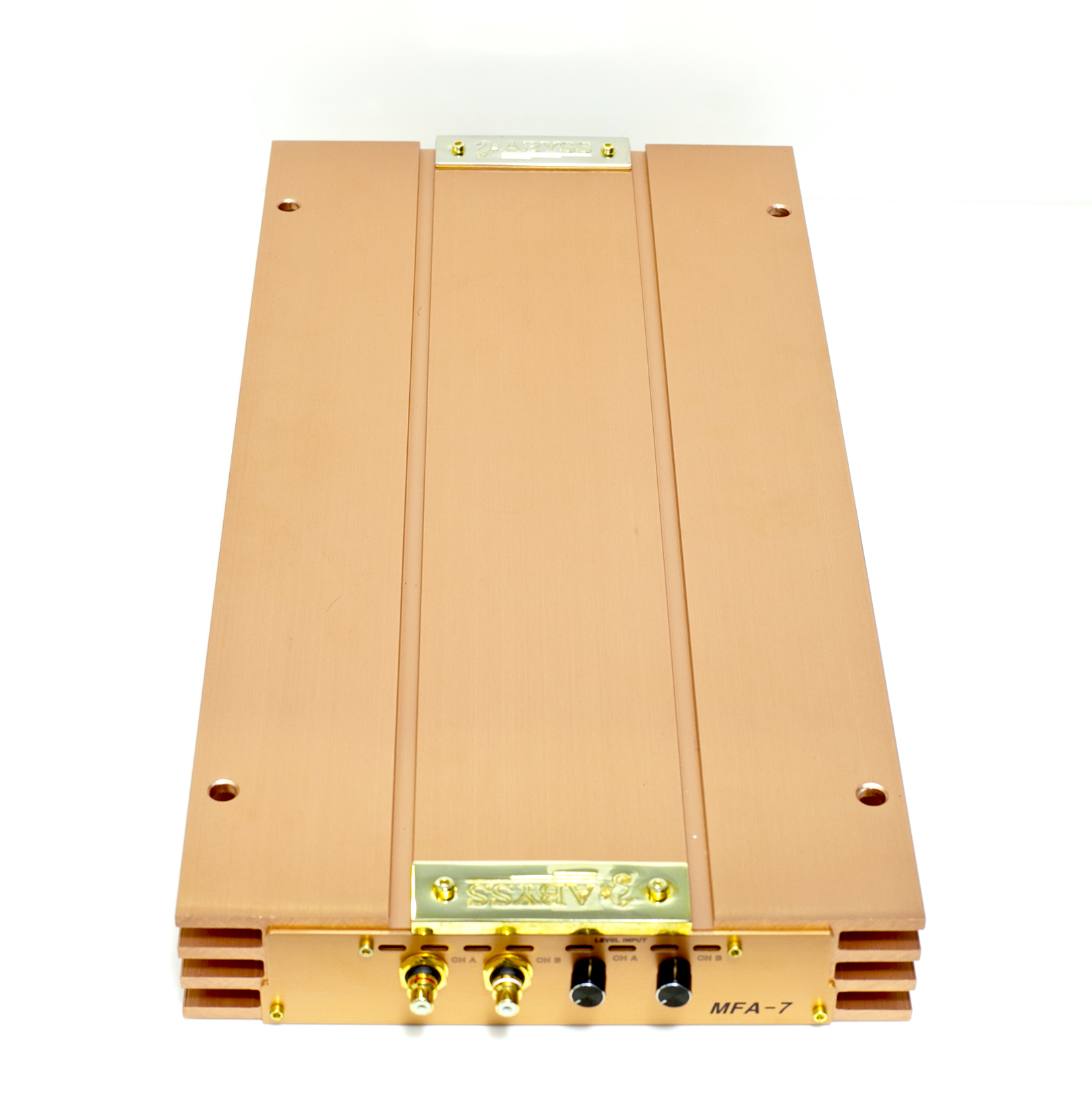

  2CHANNEL




















The Abyss MFA 7 series was the amplifier that put Abyss on the map back in the day.
Yes it will look familiar to people under another brand. But here's the kicker:
The MFA 7 series was around in Korea and Asia before the other brand :)
Read up our history section to get the full story :)
The MFA 7 board layout has been around for close to 18 years and this amplifier will take on every modern amplifier out there in the market today.
Way ahead of their time, Abyss was way ahead in its day and is still ahead of others today.

OUTPUT POWER RATING:

4 OHM @ 14.4V ( 1% THD+N) : 250W X 2
2 OHM @ 14.4V ( 1% THD+N):430W X 2
MONO BRIDGED @ 4 OHM: 850W X 1
OPERATING VOLTAGE : 9 - 16V
POWER SUPPLY: PWM
OUTPUT POWER CIRCUIT CONFIGURATION:  CLASS AB
MAIN PCB MATERIAL : FR-4D/ 1 OZ
MISCELLANEOUS SPECIFICATIONS:

 SOFT START SOUND: YES
FREQUENCY RESPONSE @ -1dB ( 4 OHM 10 WATT): 20HZ - 20KHZ
DAMPING FACTOR (  4OHM/ 1%) : >200
S/N RATIO ( A-WEIGHT/ RMS POWER) :> 92dB
THD: ( 1-WEIGHT) 10W : 0.050%
CHANNEL SEPARATION: > 60dB
VARIABLE INPUT GAIN CONTROL ( 1% THD+N): 0.4V ~ 2.0V
INPUT IMPEDENCE: 20KΩ
LED(s): POWER/ PROTECT
PROTECTION ( SHORT, THERMAL, DC OFFSET): YES
RESIDUAL NOISE ( A- WEIGHT): 0.5mV BELOW
DIMENSIONS(WXHXL, MM): 265 X 53 X 554
WEIGHT: 8KG
